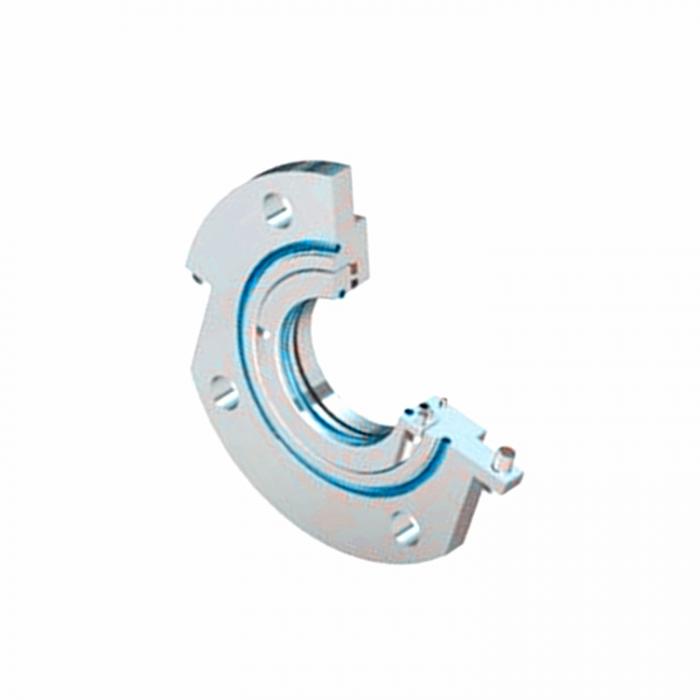

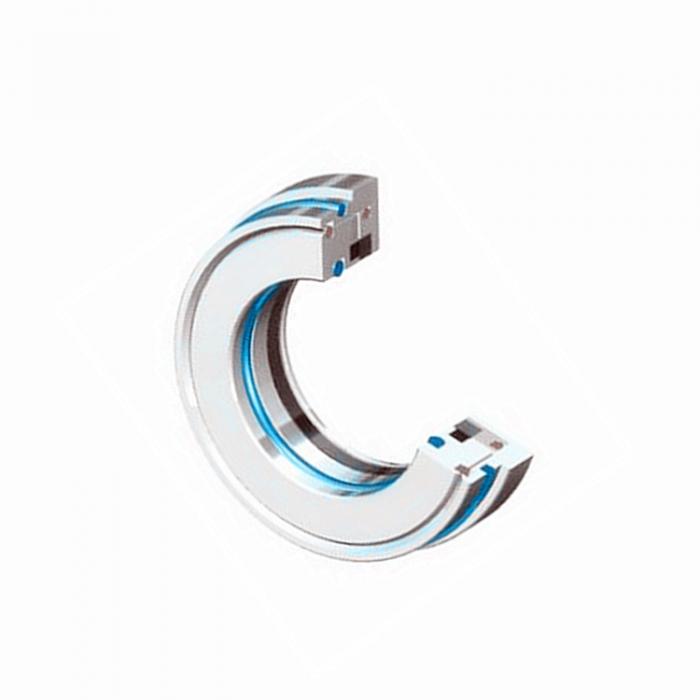

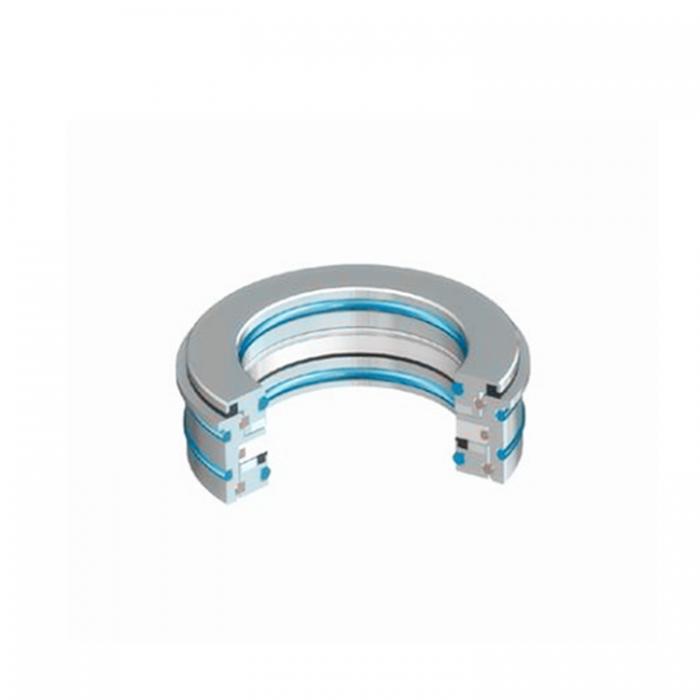

Bearing Protector
Name: | Bearing Protector |
Type: | TQM/TQM S/TQM YW |
Size: | 25mm~220mm |
Temperature: | -40°C~+200°C |
Axial Movement: | Max. 0.5mm |
Axial Run-out: | Max. 0.3mm |
Speed: | Max. 60m/s |
H.S. Code: | 8484200090 |
Special bearing protector is made of high quality copper alloy.
Different design structures and material combinations supplied by different operation conditions of bearing chamber from chemical and pulp industry.
Design working life is up to 40000 hours compare to 3000 hours of traditional framework lip seal.
Bearing protector is special for equipment which needs high performance on bearing.
Adopts design of axis automatic centering position. It can be followed up to isolate whatever bearing assembled decling.
